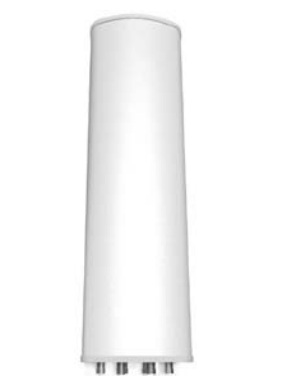

Anttennas Specifications
Note: : All the values are according to NGMN Alliance BTS Standards calculating commendation
| Electrical Specifications |  | ||||||||||
| Frequency Range (MHz) | 3300-3800 (x4) | ||||||||||
| 3300-3600 | 3600-3800 | ||||||||||
| Polarization | ±45° | ||||||||||
| Gain (dBi) | 14.3 | 14.7 | |||||||||
| Horizontal Pattern |  | ||||||||||
| Half-Power Beamwidth | 58-68 |  | |||||||||
| Front-to-Back Ratio (180°±30°) | ≥ 25dB | ≥ 25dB | |||||||||
| Cross-Pol Ratio(broadside) 0° | ≥ 15dB | ||||||||||
| Sector ±60° | Typically : 8dB | ||||||||||
| Vertical Pattern |  | ||||||||||
| Half-Power Beamwidth (deg) | 10-13 |  | |||||||||
| Electrical Downtilt Range | See options below | ||||||||||
| 1st Upper Sidelobe Suppression | <-15dB | ||||||||||
| VSWR / Return Loss | < 1.5 / -14dB | Connector Plate | |||||||||
| In-Band Isolation Port to Port | ≥ 25dB | ||||||||||
| 4 3300 | 3800 -45° | 4 3300 | 3800 +45° | 3 3300 | 3800 -45° | 3 3300 | 3800 +45° | 2 3300 | 3800 -45° | 2 3300 | 3800 +45° | 1 3300 | 3800 -45° | 1 3300 | 3800 +45° | ||||
| Inter-Band Isolation Port to Port | ≥ 25dB | ||||||||||
| Intermodulation (IMD3) | NA | ||||||||||
| Max. Power per Input | 130 W |  | |||||||||
| Impedance | 50 Ω | ||||||||||
| Lightning Protection | DC ground | ||||||||||
Note: : All the values are according to NGMN Alliance BTS Standards calculating commendation
| Mechanical Specifications | |
| Connector | 8 x 4.3-10 DIN(F) |
| Connector Position | Bottom |
| Radome Material | ASA |
| Radome Color | Gray |
| Operating Temperature | -40 °C~65 °C |
| Humidity | 95% RH@+30 °C |
| Rated Wind Speed | 200 km/h, 125 mph |
| Rated Wind Loading (Rear) | 337 N@ 150 km/h |
| Mounting Hardware | Φ50 ~ Φ115 mm |
| Mechanical Downtilt Range | 0° ~20° |
| Antenna Weight | 11 kg |
| Packing Weight | 18kg |
| Antenna Size (LxWxH) | 1000 x 270 x 136 mm |
| Packing Size (LxWxH) | 1165 x 380 x 278 mm |
| RET Specifications | |
| Input voltage range | 12-30 V |
| Power Consumption | < 1 watt (standby) |
| Protocols Compliant | 3GPP / AISG 2.0 / AISG 1.1 |
| Electrical Angle Tilt Range | |
| 2C | H :2° ~ 12° |
| Electrical Tilt adjustment | |
| P | Pluggable RET |
